The Titan 240sp 2400 Rigid Kit comes complete with everything you need for a reliable, off-grid power system for any situation. Ideal for power outages, recreational vehicles, or an off-grid home. With twelve (12) 200-watt rigid solar panels and three lithium Iron Phosphate battery packs, it’s the perfect size for running most household appliances, including a refrigerator or freezer, lights, computer or laptop, tv, power tools, and even a well pump for an extended period of time.

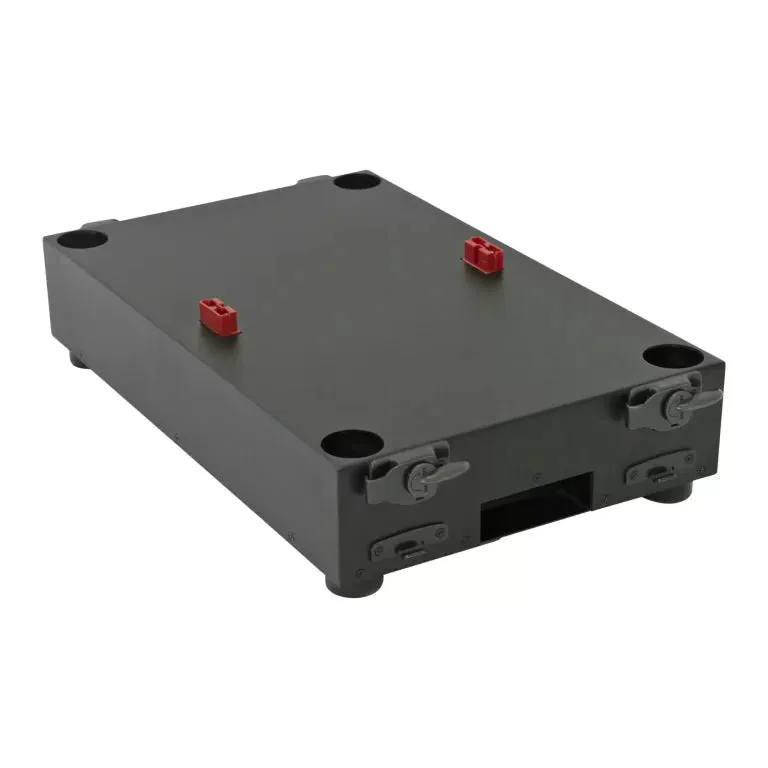

Battery specs for each battery:
Battery Voltage:
27.2v
Battery Capacity:
90ah (usable) 2500 watt hours (usable)
Maximum charge current:
50A (approximately 1300 watts)
Maximum continuous discharge:
130A (approximately 3500 watts)
Maximum surge discharge current (10 seconds or less):
300A (approximately 7700 watts)
Weight:
47lbs
Size:
12×18.5×5 in (not including the feet)
Inverter Specs:
Output voltage:
240v split phase AC (pure sine wave)
Continuous power output:
4,000 Watts
Peak power output:
8,000 watts for 10 seconds
Inverter no load power consumption:
15-25 watts (typical 20 watts)
Size (top portion not including the battery):
12 x 18.5 x 8.5 in (not including the feet)
Weight:
62lbs
Solar MPPT charge controller:
Input volts:
35V to 130VDC
Maximum input amps:
30 amps per input port
Maximum charging amps:
90A
Charge rate:
up to 2400W

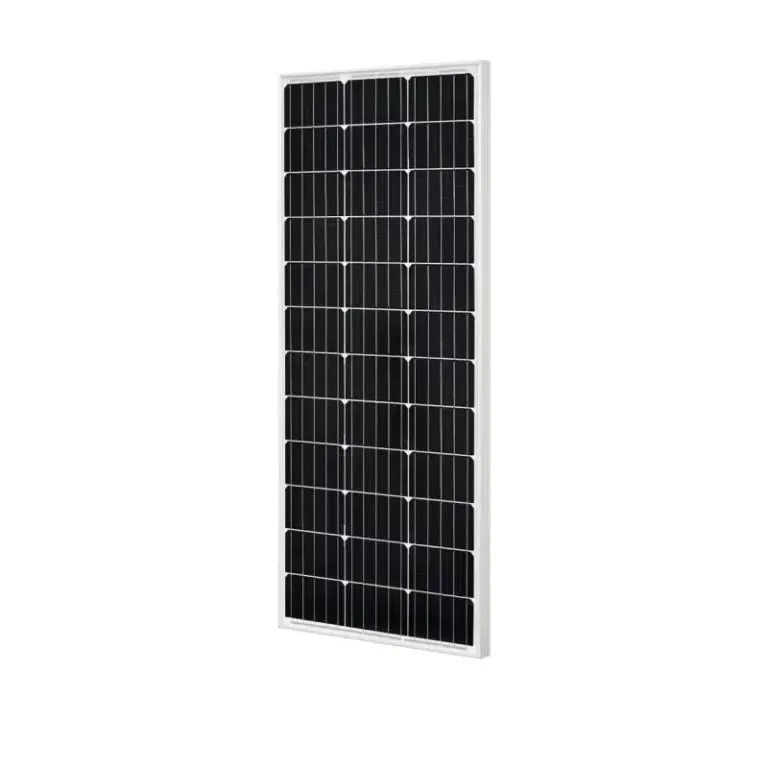

Solar panel specs (per panel):
Maximum power (Pmax)
200
Voltage maximum power (Vmp):
19.8V
Current maximum power (Imp):
10.01 A
Open circuit voltage:
23.4V
Dimensions:
58.25 X 26.75 X 1.38 in
Weight:
26 lbs
Other specs:
AC charging:
Up to 2800 watts with four 25A chargers
Solar Charging:
Up to 4,400 watts with two external mppt chargers
Number of outlets:
4-15A, 1- Nema14-50R (50A RV outlet), and 1-L14-30R (30A twist lock)
Weight:
62lb power module; 47lb battery
Dimensions:
18.5x12x13.5 (battery and Power module together, not including the feet)
Warranty:
Batteries: 5 years standard 5 years extended (if purchased)
Power module: 5 years standard 5 years extended (if purchased)
Solar panels: 25 years
Addon specs:
Solar panel mounting:
Z Brackets mount panels directly to a roof
Tilt Mounting allows panels to be tilted at an angle.
RV waterproof entry:

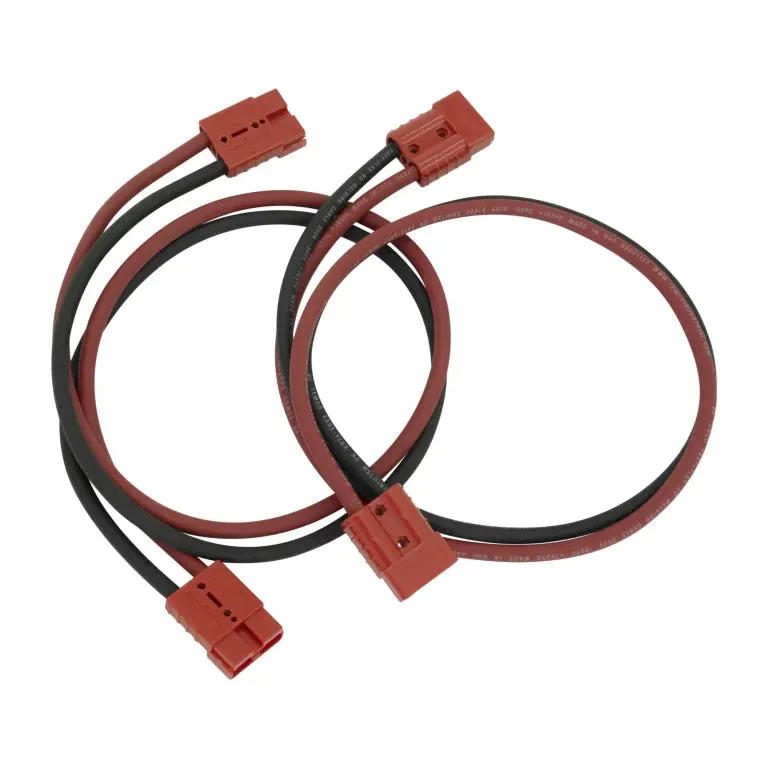

This will include one or two (depending on the kit) waterproof boxes that mount to the top of your rv. This will allow you to connect your solar through your roof and to the Titan 240sp power station. It comes with 25' of wire and anderson power pole connectors to plug directly into the power station.

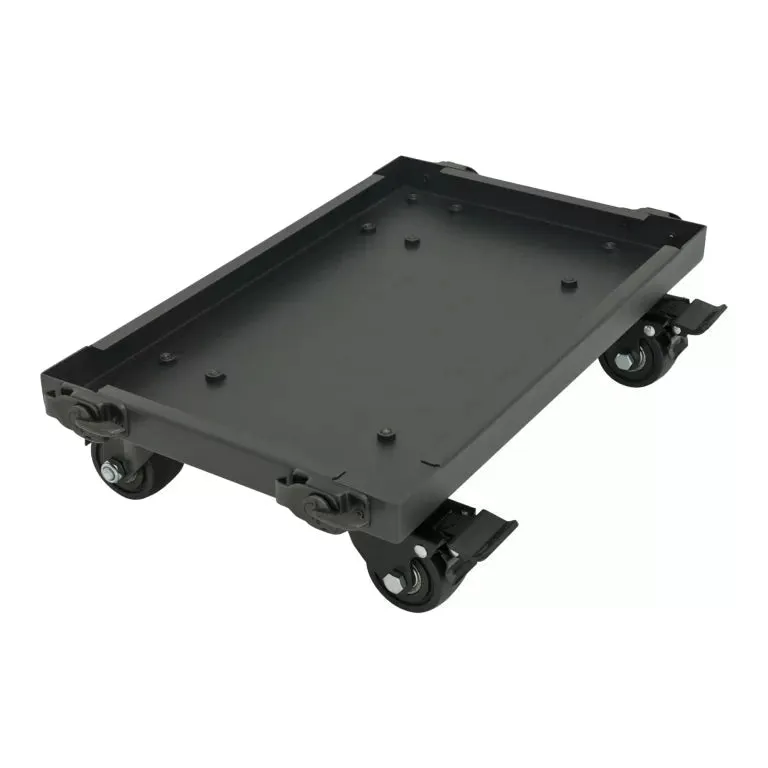

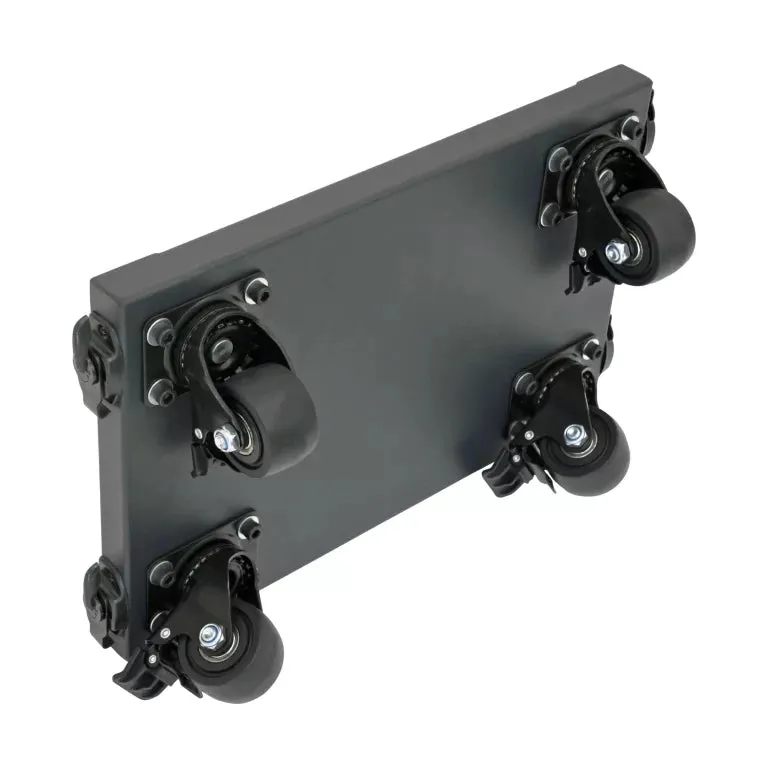

Cart with wheels:
Our heavy-duty cart is capable of holding up to 1200 lbs, and it connects directly to the bottom of a power station or a battery.

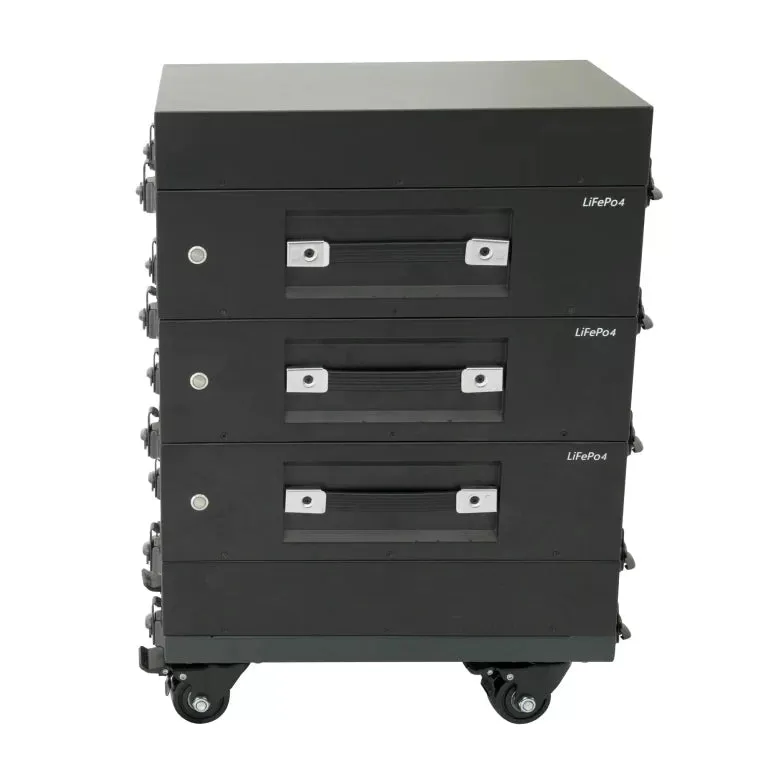

Batteries:
Your kit will come with some batteries (depending on the kit), but you can add more fore even more energy storage. Each battery will add an extra 2500-watt hours of storage.

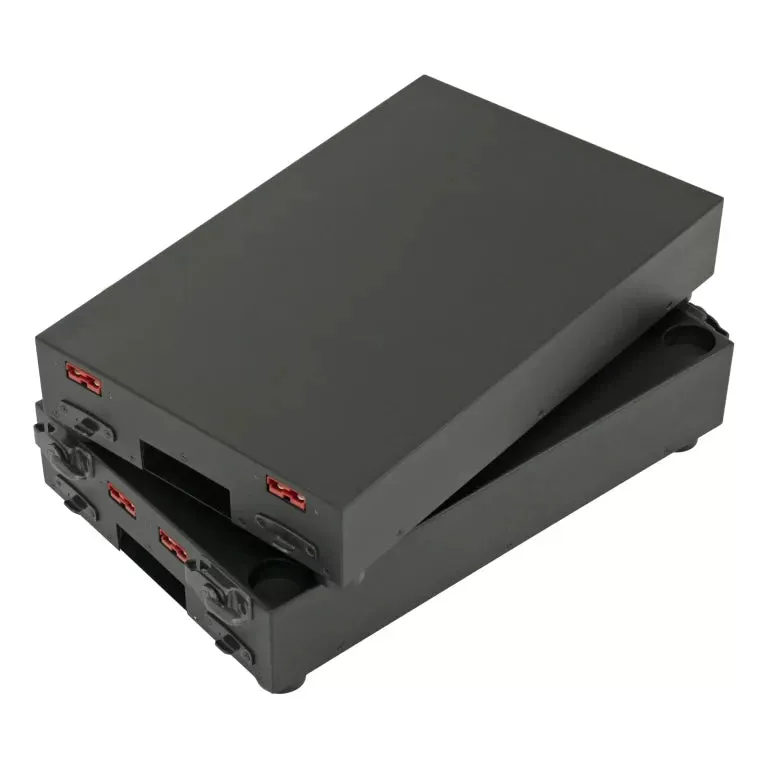

Base/cap expansion:

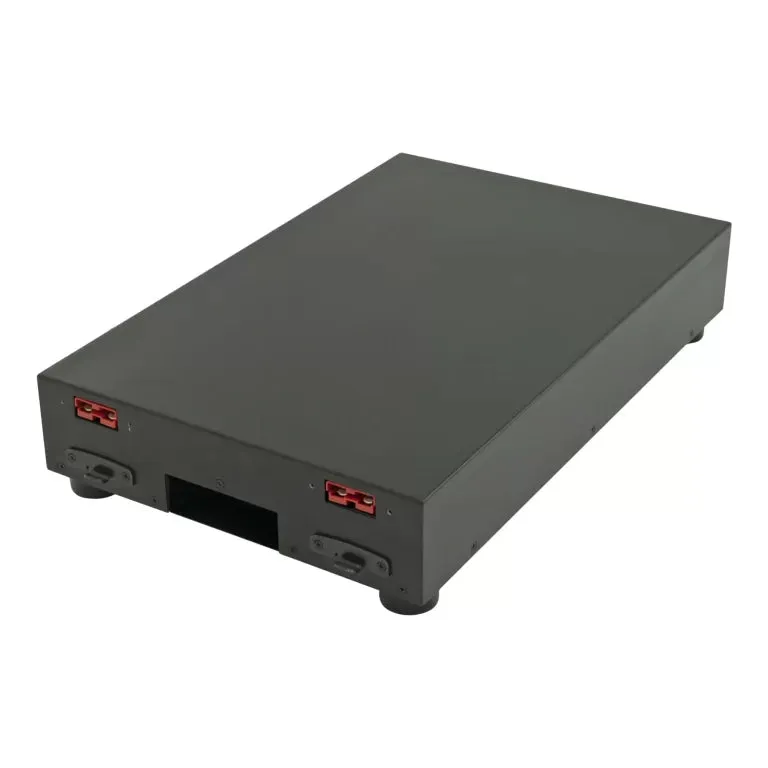

The cap goes on top of the battery, or power module to give a clean flat surface, while moving the terminals to the side, for expansion.

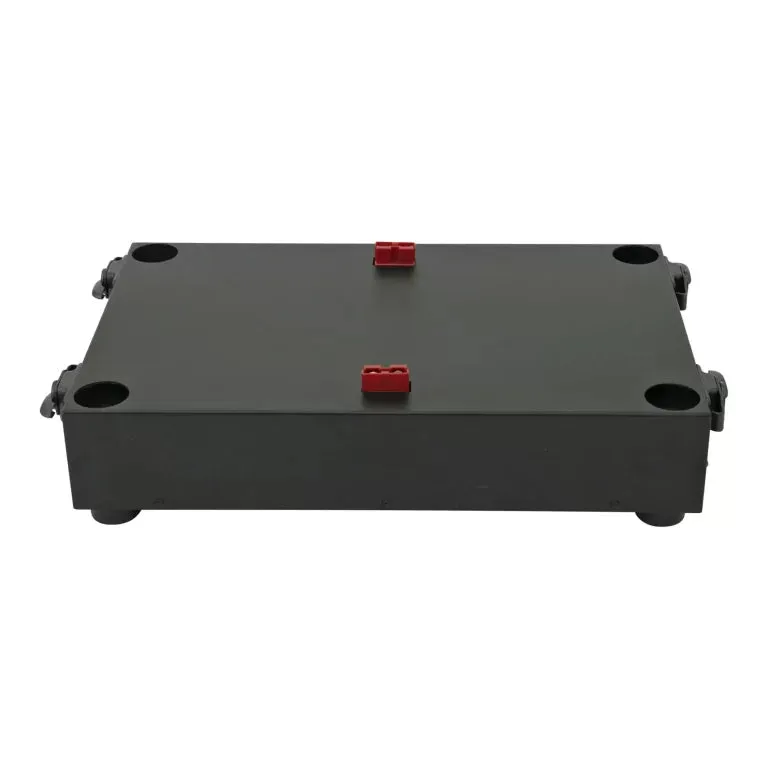

The Base goes on the bottom of a battery or power module to provide side ports for expansion.
Warranty:
By adding the warranty addon, it will extend the warranty from 5 years to 10 years for all batteries and power module in the kit.
