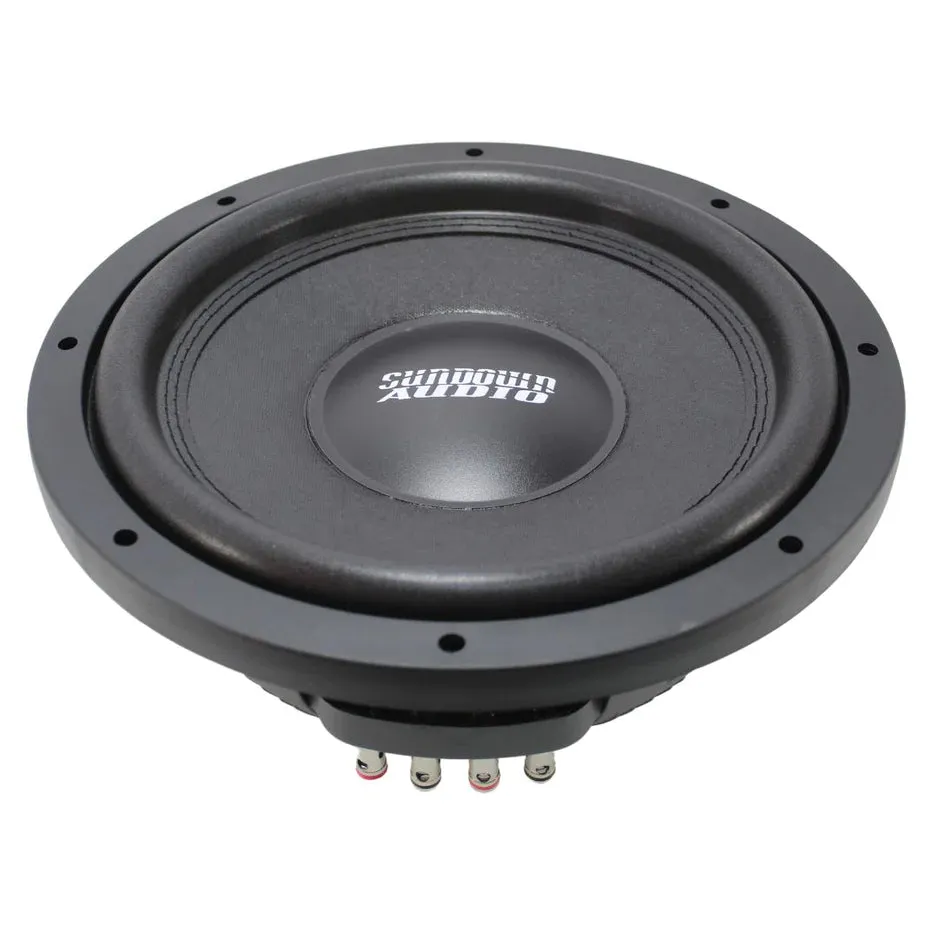

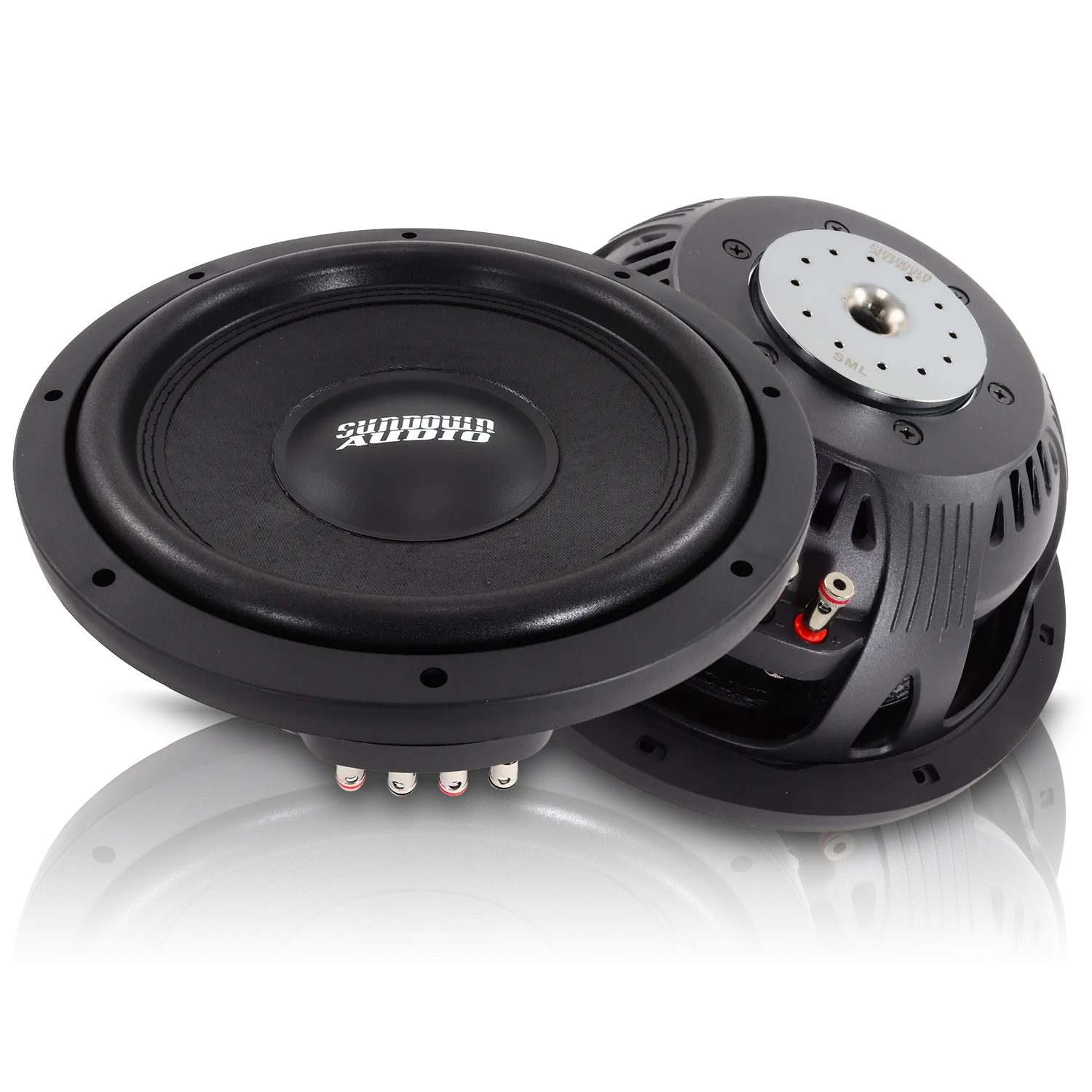

Sundown audio slim SML 12 is sundown audio‘s thin subwoofer line. This 500 WATT RMS subwoofer is designed for tight spaces and super low fs, this shallow 12 that gets down for big bass sound. Great for motorcycles, coupe sports cars with tight hole and motorcycle bags.
Features:
- Xmax = 11mm one-way by 70% BL
- Xmech is a hard limit of 25mm one-way for 12s and 20mm one-way for 10s
- RMS Power = 500-watts
- Black Aluminum 2.5” voice coil former for superior heat dissipation
- High Temperature 4-Layer copper voice coil wire

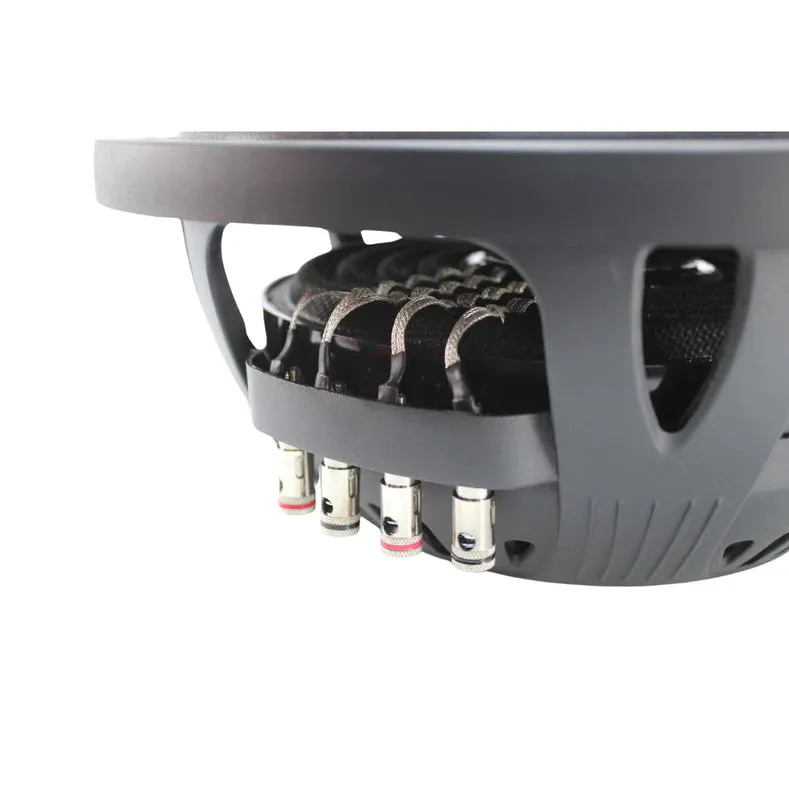

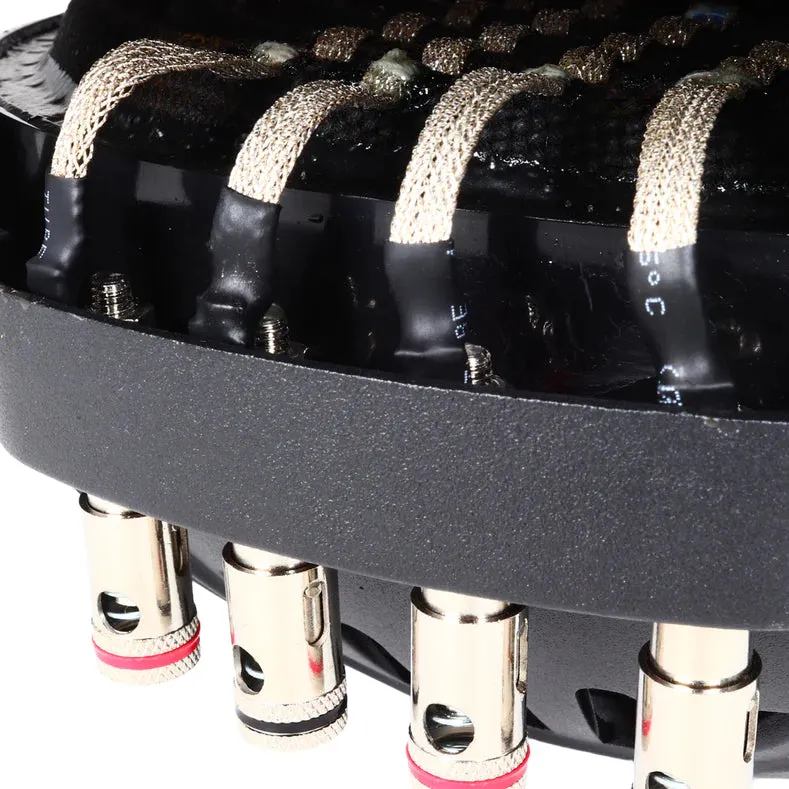

- Stitched-On “Mini-XL” Tinsel Leads to prevent fatigue and failure
- Vented Pole-Piece and Multi-Vented Magnetic Gap
- Dual-Magnet Design for appropriate motor force factor and mid QTS
- Custom tooled cone shape for reduced mechanical noise over high excursion

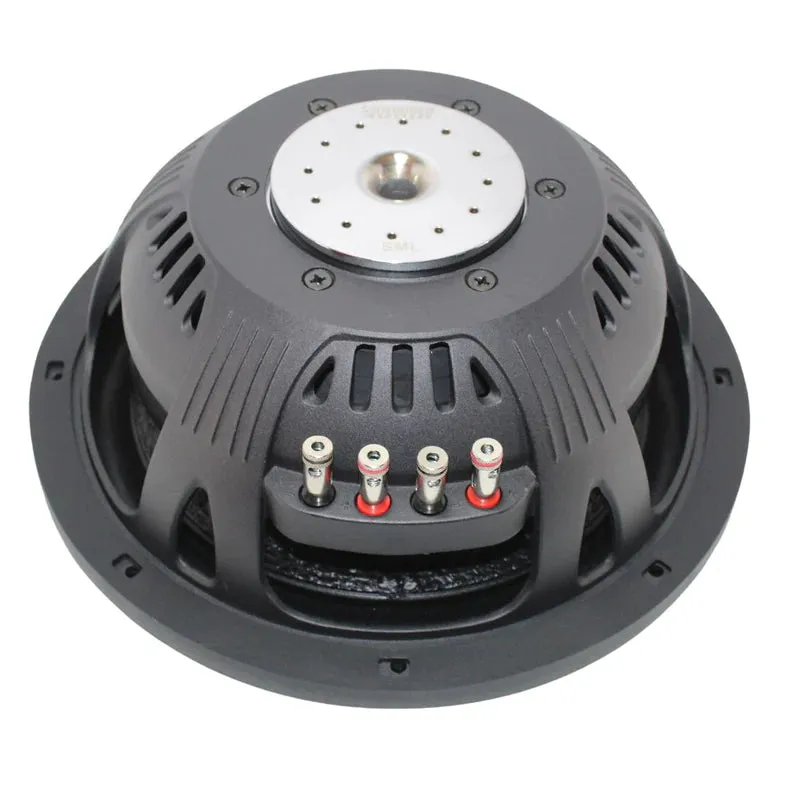

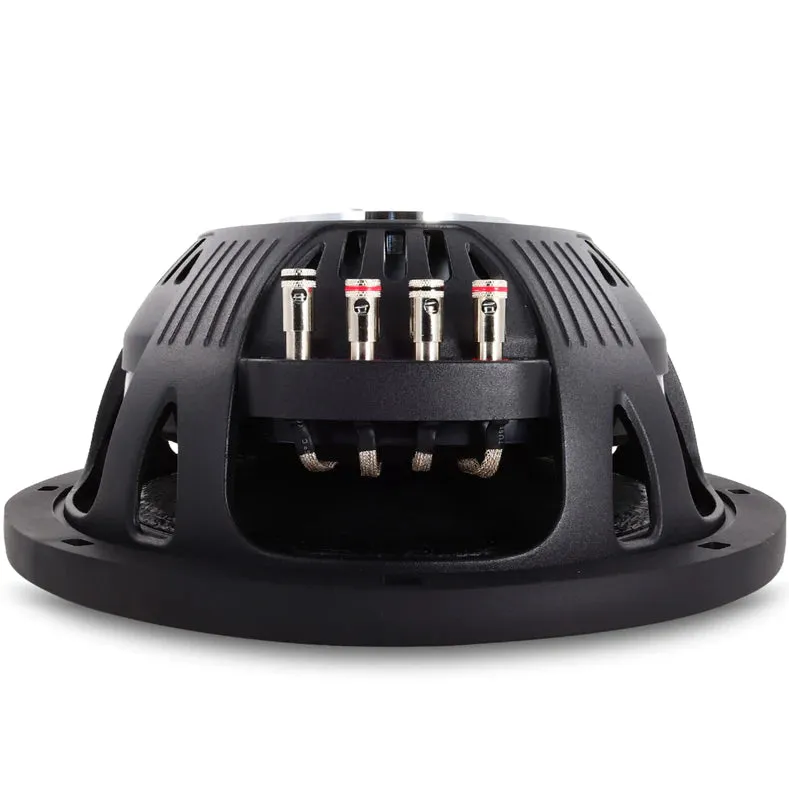

- Bolt-through motor design to ensure maximum longevity and ruggedness against mechanical failures
- ** This motor is bolted through the top so the bolts are not visible from the back like several other models.
- Magnet ID shorting ring
Specifications: - RE (Ohms) 3.650
- FS (Hz) 34.932
- VAS (L) 39.012
- Qes 0.456
- Qms 2.862
- Qts 0.394
- BL (NA) 17.879
- Mms (Grams) 182.067
- Cms (uM/N) 114.018
- Sens (dB @ 1w/1m) 87.5dB
Enclosure Specifications: - Sealed Enclosure 0.75-1.0 ft^3
- Ported Enclosure 1.25-1.75 ft^3
- Recommended Tuning 35hz
- Recommended Port Area Depends on box design.
- Mounting Depth 4.45”
- Diameter 12.6"
- Cutout 10.75"
- Weight 28LB
