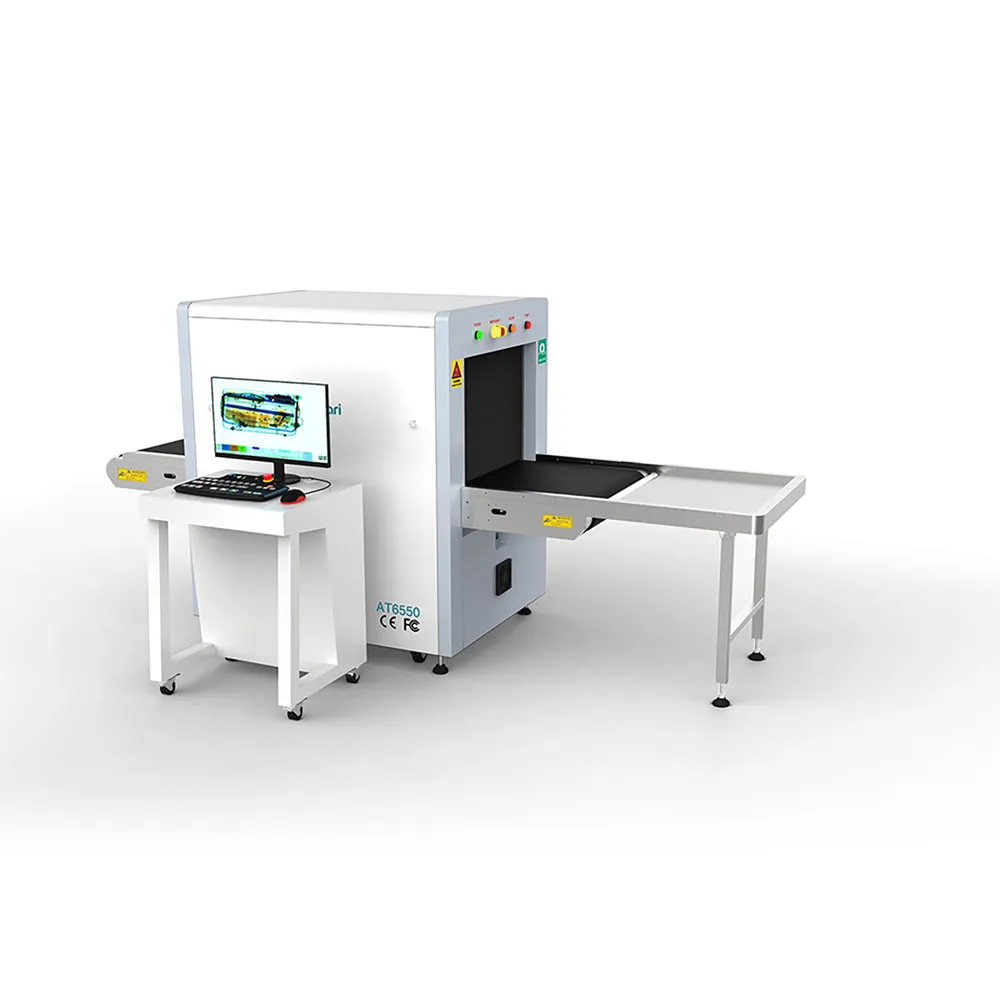

FEATURES
- Multilingual operation
- Automatic built in test and self diagnosis
- Secure access key
- Treat alert and material classification
- Auto archiving
- Energy saving design
- One key turn off
- Drugs and explosive inspection
- Indication of the date and time
- Baggage counter
SPECIFICATIONS
Unit weight: 480 Kgs
Unit size: 2195(L)*902(W )*1362(H)
Gross weight:
700kg
Packing size:
Box #1: 234*110*160cm, Box #2: 75*65*99cm
Tunnel size:
659(L)*504(W)
Conveyor speed: 0.2m/s
Conveyor height: 700mm
Conveyor max load:
150kg
X ray dose per each inspection: ≤ 3.5μSv
X ray leakage: ≤ 1μSv/h at any point 5 centimeters outside the external surface
Penetration: 30mm steel
Wire resolution:
AWG40
Penetration resolution: AWG32
Spatial resolution: Horizontal:dia 1.0mm, Vertical: dia 1.0mm
Power consumption:
max 800W
Noise: <60dB
Film Safety: Guarantee ASA/ISO1600 Film
X-RRAY GENERATOR (SINGLE)
Anode voltage:
140KV
Ray direction: Upward
Cooling / Duty Cycle: Sealed oil cooling / 100 %
IMAGE SYSTEM
X-Ray sensor:
L-shaped photodiode array, 12bit deep
Image process: 24bit real time processing, 4-color analysis, ID No., counts the number of bags.
Image display: High resolution of 1920*1080 pixel; Image Grey Level: 65536
Image enhancement: 1-64 times enlargement continuity, color/BW, negative, high/low penetration enhancement, brightening, darkening, gray level scan, super enhancement, elimination of organics/inorganics, local enhancement, pseudo color processing, edge enhancement, etc.
Explosives & narcotic detection: Suspicious organics highlight(atomic number Zeff=7,8,9)
Suspicious alarm: Alarm and box lines the suspicious objects including hard to penetrate material, explosives, and drugs.
Threat Image Projection: Inserting fictional but realistic images of threat items into the baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability.
Image recall: 30 images recallable
Image archive: Up top 50,000 images stored automatically, enable transferring to USB disk, and converting to jpg, bmp, and other general formats.
Miscellaneous Functions: Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, etc.
Options: Additional table, inteligent roller, etc.
OPERATING ENVIRONMENT
Operation temperature/ humidity: 5-40 / 0%-90% (non-condensing)
Storage temperature/ humidity: -20-60 / 10%-90% (non-condensing)
Operation Power: 220VAC (±10%) 50±3Hz (Optional: 100VAC, 110VAC, 120VAC, 2000VAC)
UPS: Optional
COMPUTERS AND OTHERS
Monitor:
One 21.5-inch LCD monitor, 1920*1080, one console desk
RAM:
4GB
Hard Disk:
1T
Keyboard: Special design
System: Windows 10
Electric roller: Three-phase
COMPLIANCE
International: ISO19001; ISO14001; ISO45001, CE RoHS, FDA FCC
