Name: Maven Portable X-ray Package
SKU: 159043

The System is a complete portable digital radiography system featuring any DR Cesium Imaging Panel integrated with a MinXray HF120/60H PowerPlus™ portable x-ray unit. The system easily moves on its two-wheel cart. The panel slips out of its protective sleeve and the system sets up in less than one minute.

The package provides the following features:

• Rugged construction yet light and compact

• Easily transportable between sites

• Set up in less than 1 minute

• Image acquisition in less than 10 seconds

• Superior resolution

The system includes:
1 ea. HF120/60 PowerPlus™ High Frequency Portable X-Ray Unit

System Net Weight: Approximately 147 lb (66 kg) assembled with x-ray

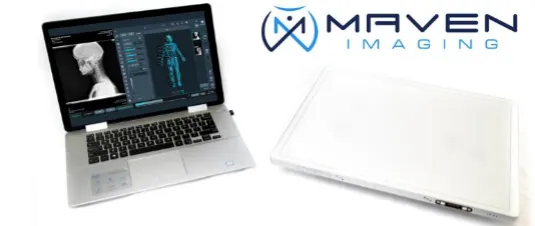

14 x 17 inch CsI Wireless, cassette size DR Flat Panel Detector, with advanced acquisition VOYANCE software and PACS

System Specifications

14x17 inch CsI Wireless, cassette size DR Flat Panel Detector

Active area (Real Image Size):
360x430 (14x17 inches)
Overall Dimensions: 344x459x15 mm (13.5x18x0.59 inches)

Weight: 3.8 /- 0.25 Kg
Power Consumption: Idle - 3.3 watts, Acquisition - 7.8 watts, Image Transfer - 10.2 watts
Pixel Pitch: 139 μ m
Pixel Matrix Size: 3,052 (v) x 2,456 (h)
A/D Conversion: 16 bit
X-ray Voltage Range: 40-150 kVp
Wireless Modes STA or AP: 802.11 a/g/n/ac, 2x2 MIMO
2 Batteries, Battery Charger Cable Included
Automatic Parameter Selection
Specific Anatomical Post-processing

Voyance Acquisition Software

General Features

Superior Image Quality
Exam-specific algorithms image processing
Automatic image optimization
Edit existing patient information/search patient by patient name, patient ID, Accession number, bar code, etc.
True size for printing
Resend / Reprint image
Send/Print queue management
User-friendly touch GUI
Useful functions: Auto Cropping, Auto Grid Suppression, Auto Labeling, Auto Rotation, Free Rotation, Multi Layout, etc.
Fully DICOM 3.0 Compatible: MWL, Send, Print, MPPS, etc.
Customized functions and various themes

User Interface

User-Friendly Interface Supporting Touch Screen Functions
One Screen to Access All Functions
Same Interface for the Acquisition Software and Viewers
Image Processing With Advanced Algorithm
Fast Processing with Superior Image Quality
Intelligent Algorithms for Sharp Edges without noise amplification
Automatic image optimization

Voyance PACS

Voyance Server is a complete and cost effective Voyance Imaging solution that provides imaging departments with a scalable and upgradable solution to archive patient studies. The Voyance Server solution includes features to archive patients, retrieve studies, print studies, edit patient reports, record voice notes with patient study, and transmit studies over telephone lines or internet.

Voyance Server solution consists of a group of software and hardware components that has specifically chosen to provide the maximum performance and scalability.

Supports all DICOM modalities.

Archiving on PACS server and on the Network.

Multi-Level relational database structure for patients/studies/series and images.

Supports pre-fetching and auto-routing of patients to the modalities.

Scalable and Upgradable

Multi-Lingual

Easy Administration

All DICOM Features

Dell laptop

Intel Core i5-8500, 6 Core, 9MB Cache, 3.0GHz, 4.1Ghz Turbo w/ HD Graphics 630
Windows 10 Professional
500GB Hard Disk
8 GB RAM
Workstation pre-configured and with the Software installed

Master DR warranty
5 Year Warranty on DR panel parts
5 Year software warranty
Dell Computer 3 years direct from Dell Dell Monitor
3 years direct from Dell
Remote phone support for 1st year from Maven Imaging.

New 14x17 in. Lock-N-Secure with side handle (long dimension) and carbon fiber insert,

4X17" MOBILE TRANS-FORMER GRID CABINET T14-M
