The ORIGINAL Swing Arm BBQ Table
850mm Arm, Regular size Tray, all in black.

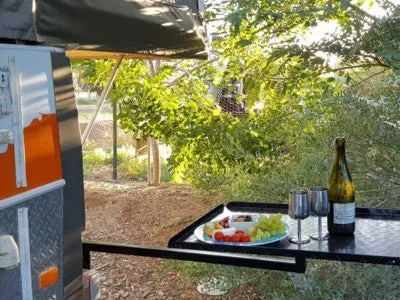

BBQARM is the must-have caravan and travel accessory for your outdoor barbecues. Australian designed and built on the Gold Coast, this space-saving innovation simply mounts to your caravan drawbar or rear bar to create a sturdy 'out of the way' place for your BBQ. Swing it away when not using. With our new TOW-HITCH mount, use your BBQARM anywhere you travel with or without your caravan.

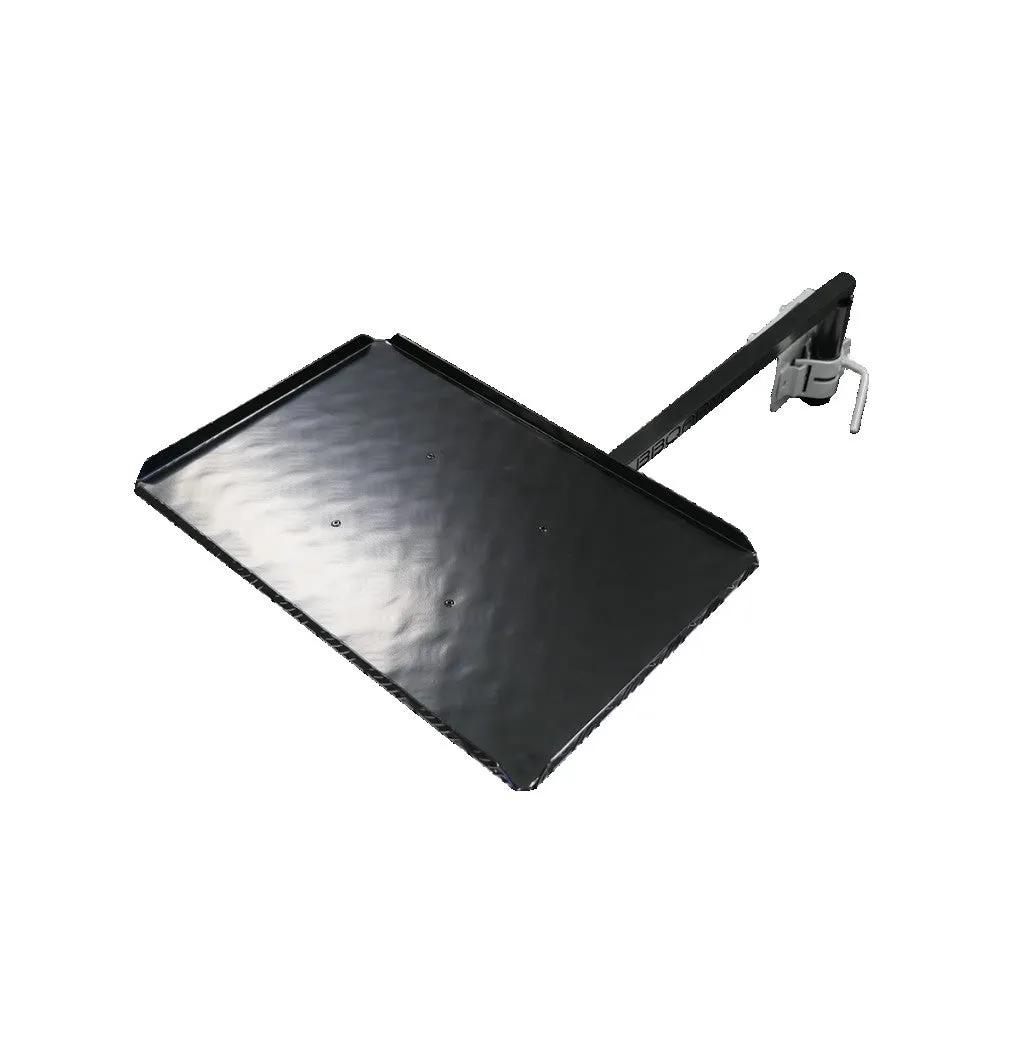

Kit has 3 parts:
1) ARM black powder-coated galvanised steel is available in 3 lengths, this one is:
- 850mm
2) TRAY chequer-plate aluminium with upturned edges, regular size:
- 560mm x 360mm (suits Weber Baby Q Q2000)
3) Universal Drawbar Mount(no-drill)
- fits 50mm/2"drawbar or rear bumber on caravan
BBQARM Kit for Caravan Or Trailer 850mm Arm
- Laser-cut and powder-coated galvanised steel tube 850mm
- BQARM Kits include mount, arm and tray
- Overall kit weighs approx. 7.5kg.
- When correctly fitted is rated to carry up to 30kg
WHAT IS BBQARM?
- BBQARM swing-away table for camp bbqs
- Take your bbq wherever you go
- Solid and simple design with few moving parts
- BBQARM is built to withstand Australia's harsh climate extremes
- With van space at a premium and weight and load a real issue for caravaners, BBQARM is light weight and portable.
Installation Instructions

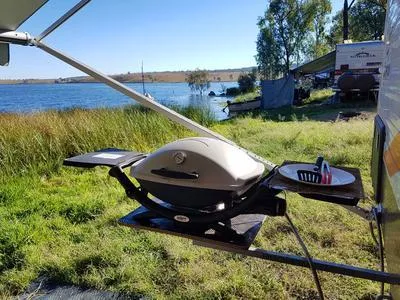

BBQARM with Universal Drawbar Mount for Caravan
- Loosen off the two bolts on the Universal Drawbar Mount
- Place the mount into position on your drawbar.
- Using a shifting spanner, tighten the bolts to secure it in place
- Unwind the handle to loosen the clamp at the front
- Place the arm into position and tighten handle
- Place the tray into the square tube end of arm
- Tighten the locking screw/wing-nut to reduce any movement

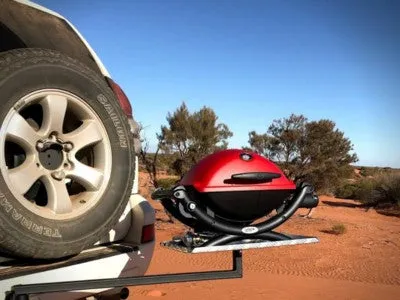

BBQARM with Vehicle Tow-Hitch mount for tow-vehicle
- Slide mount into your tow-hitch receiver.
- Slide in you locking pin
- Unwind the handle to loosen the clamp at the front
- Place the arm into position and tighten handle
- Place the tray into the square tube end of arm
- Tighten the locking screw/wing-nut to reduce any movement
BBQARM MATE
- Designed to connect to your existing BBQARM
- Undo the bolt at the front of the clamp
- Wrap the clamp around the lower shaft/round tube section of your existing BBQARM arm and tighten bolt all the way. Tighten with shifter but allow your arm to swivel (so not too tight).
- Place the tray on to the end of your arm.
- Tighten the wing-bolt to secure your tray
- If you do not have an existing BBQARM you can attach this product to the shaft of your jockey wheel
